2023 Harley-Davidson FXBR Breakout 117

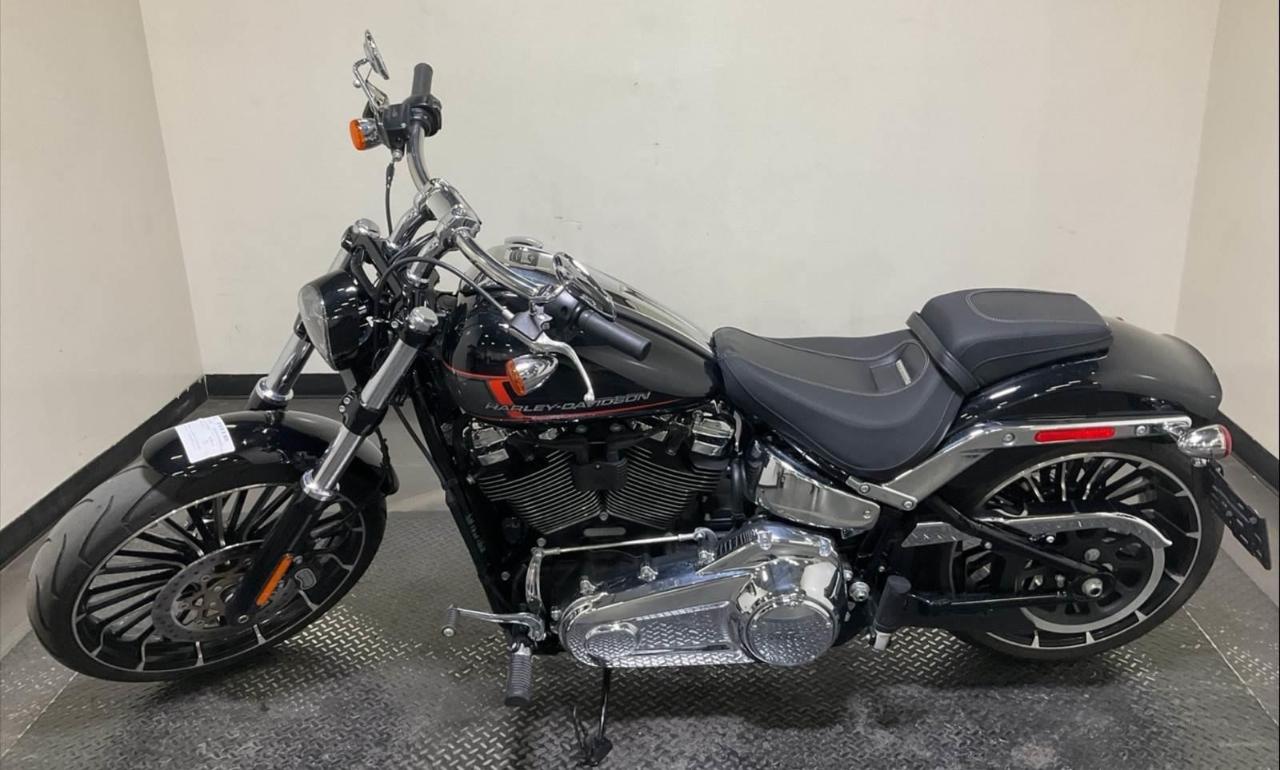

2023 Harley-Davidson® FXBR Breakout® 117

Long, low, loud, and impossible to ignore.

The 2023 Harley-Davidson® FXBR Breakout® 117 is built to make an entrance. With its stretched-out chopper-inspired stance, massive 240mm rear tire, gleaming chrome finishes, and powerhouse Milwaukee-Eight® 117 engine, this bike combines show-stopping custom style with serious performance. Harley brought the Breakout back bigger and bolder than ever, equipping it with the largest factory-installed engine in the Softail® lineup and a larger 5-gallon fuel tank for extended rides.

Twist the throttle and the Milwaukee-Eight® 117 delivers a massive 123 lb-ft of torque, launching you forward with authority while producing the unmistakable Harley-Davidson rumble. Whether you're cruising Main Street, heading to bike night, or chasing open highways, the Breakout 117 delivers head-turning style and unforgettable performance.

Specifications

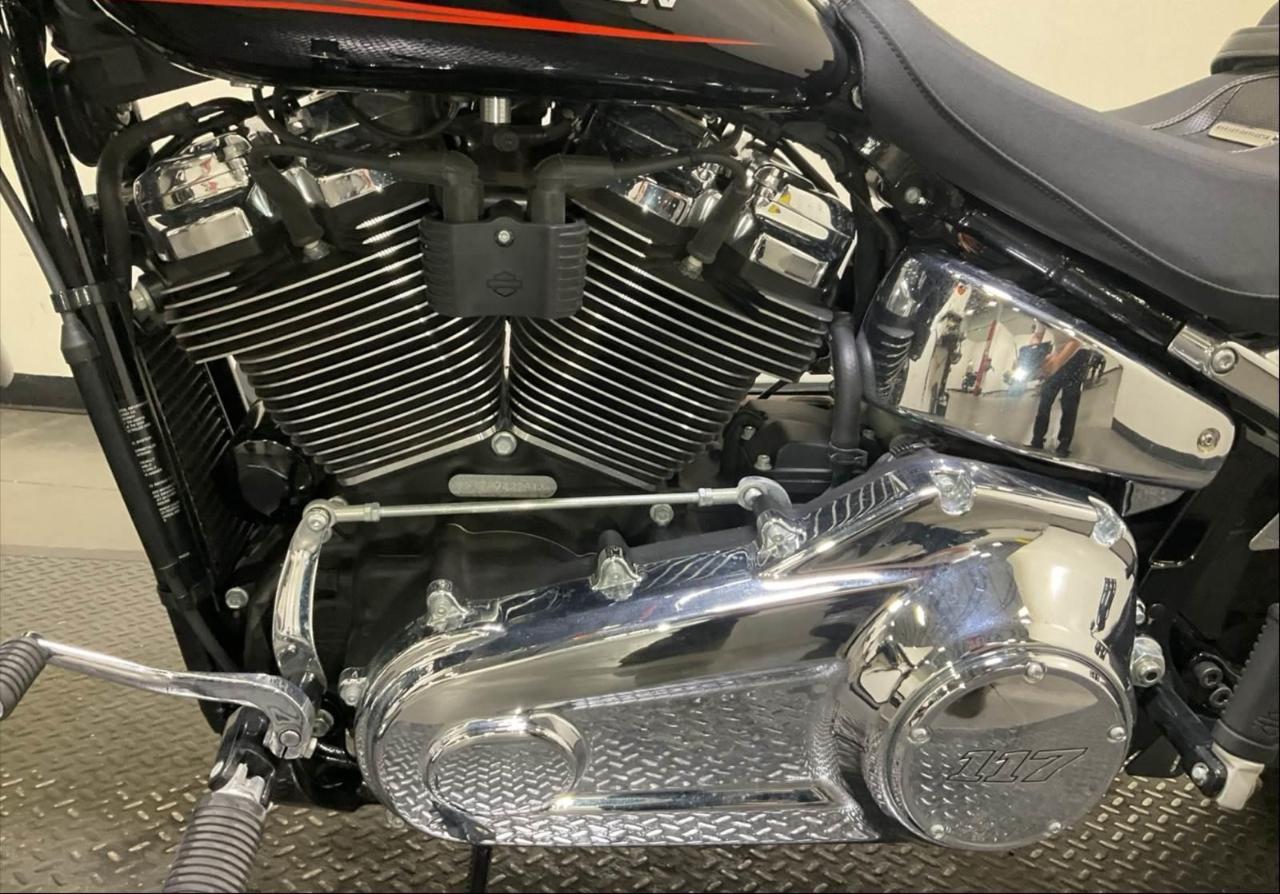

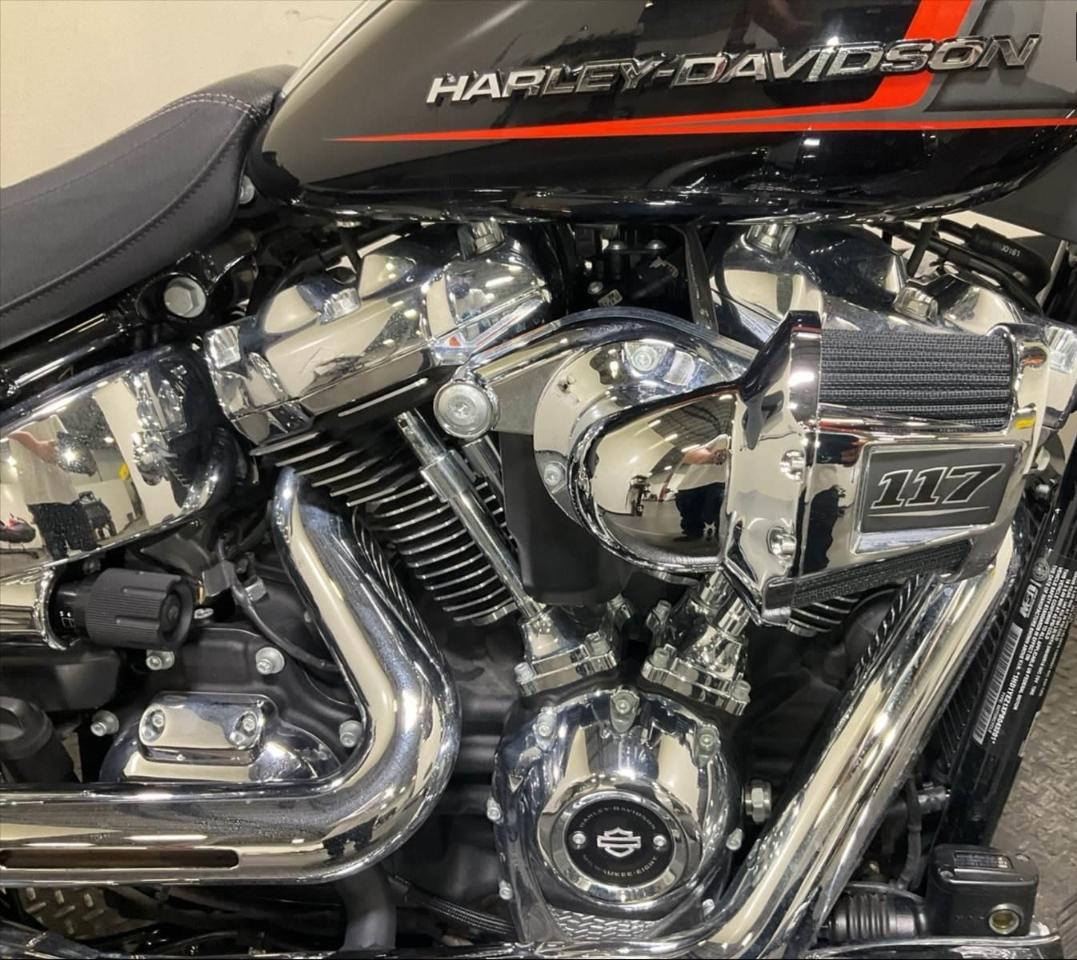

Engine

• Milwaukee-Eight® 117 V-Twin

• 117 cu. in. (1,923cc) displacement

• Electronic Sequential Port Fuel Injection (ESPFI)

• Oil & air-cooled

• 123 lb-ft torque @ 3,500 RPM

• Compression Ratio: 10.2:1

Transmission

• 6-Speed Cruise Drive®

• Belt final drive

• Multi-plate wet clutch

Suspension & Brakes

• 49mm telescopic front fork

• Hidden rear monoshock with hydraulic preload adjustment

• ABS-equipped front and rear disc brakes

Wheels & Tires

• Front Tire: 130/60B21

• Rear Tire: 240/40R18

• 26-spoke cast aluminum wheels

• Michelin® Scorcher® tires

Dimensions

• Seat Height: 25.6 in.

• Wheelbase: 66.7 in.

• Fuel Capacity: 5.0 gal.

• Wet Weight: 683 lbs.

• Ground Clearance: 4.5 in.

Features

• Milwaukee-Eight® 117 high-performance engine

• Premium chrome finishes throughout

• All-LED lighting

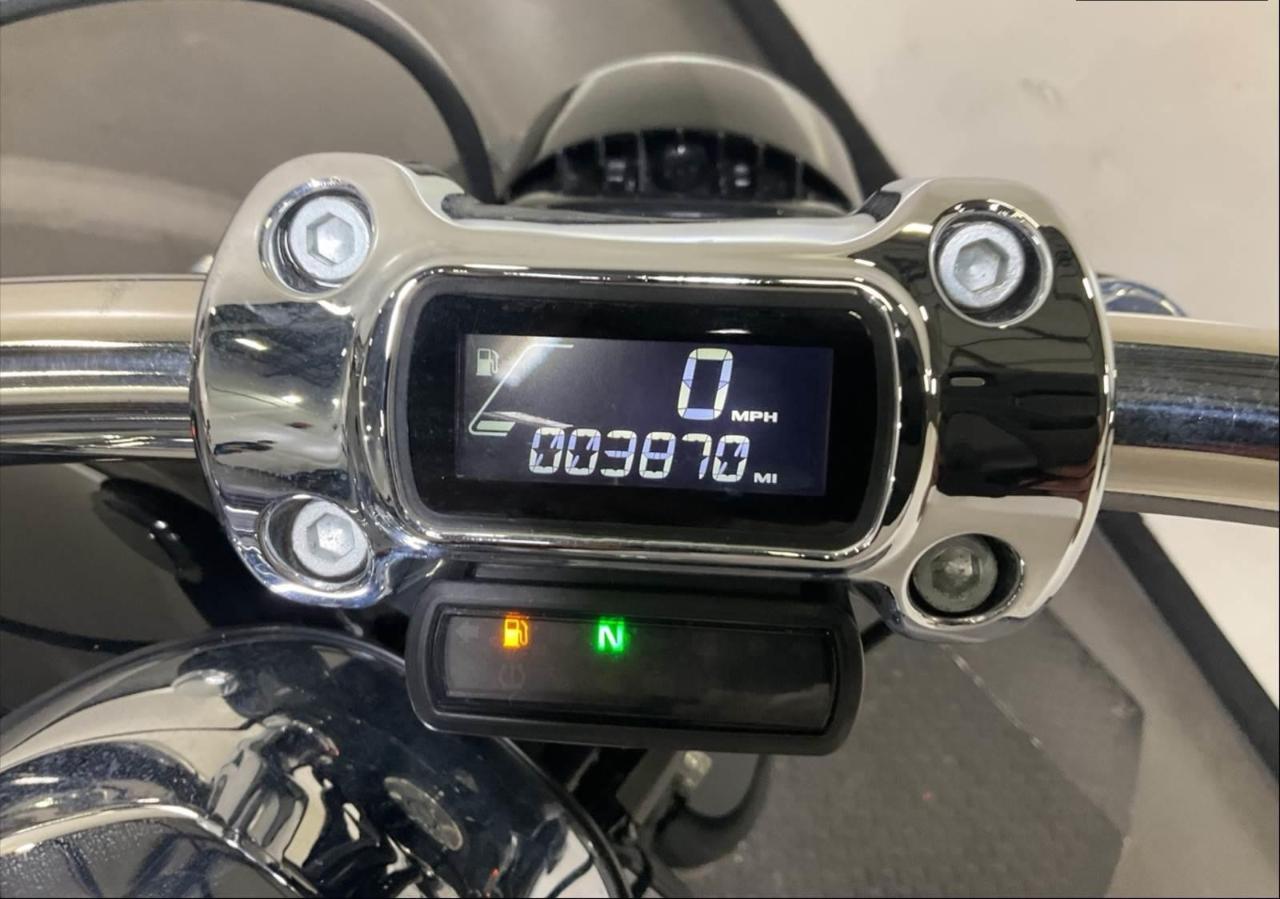

• Digital LCD instrumentation

• Optional Traction Control System

• Long, raked-out custom styling

• Massive 240mm rear tire for an aggressive stance

Perfect For: Riders who want custom-bike looks straight from the factory, massive V-Twin power, and a motorcycle that draws attention at every stop.
