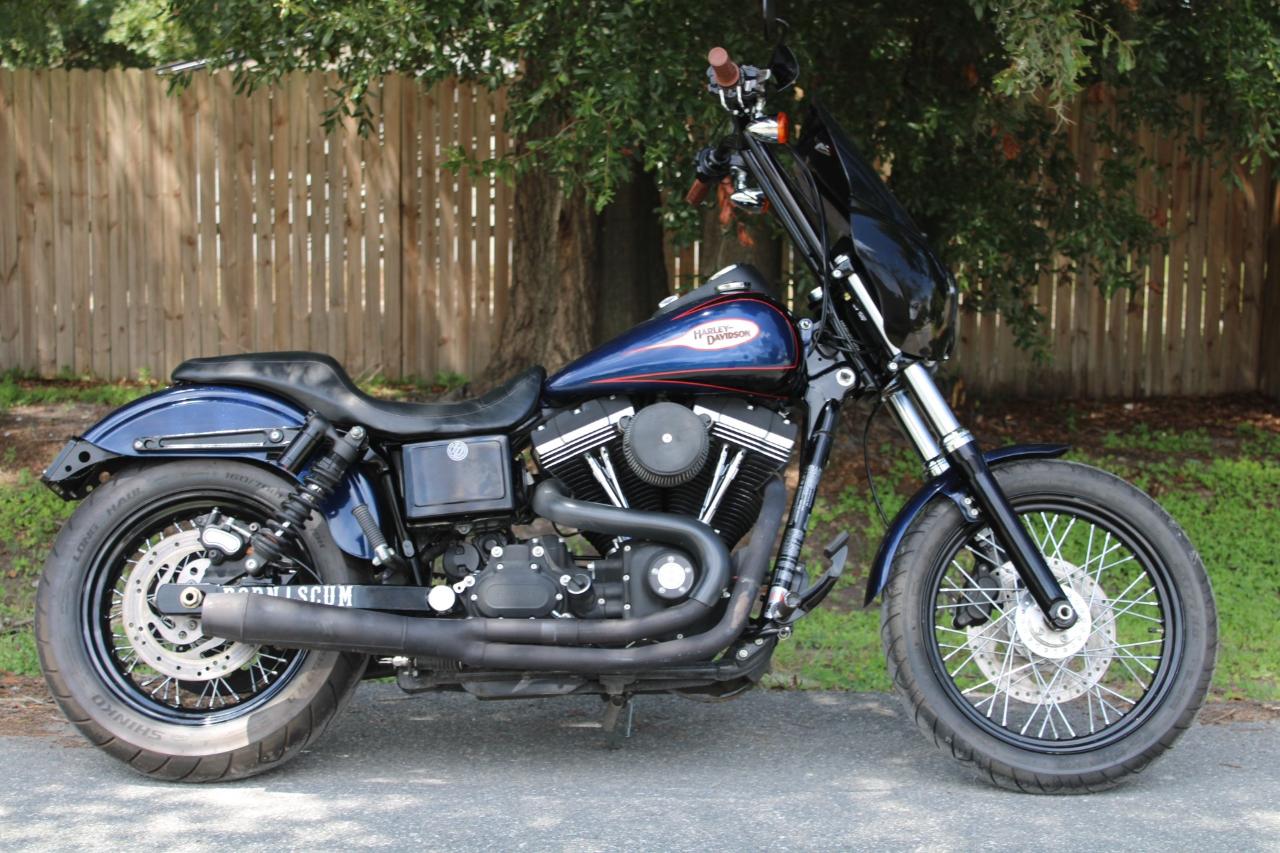

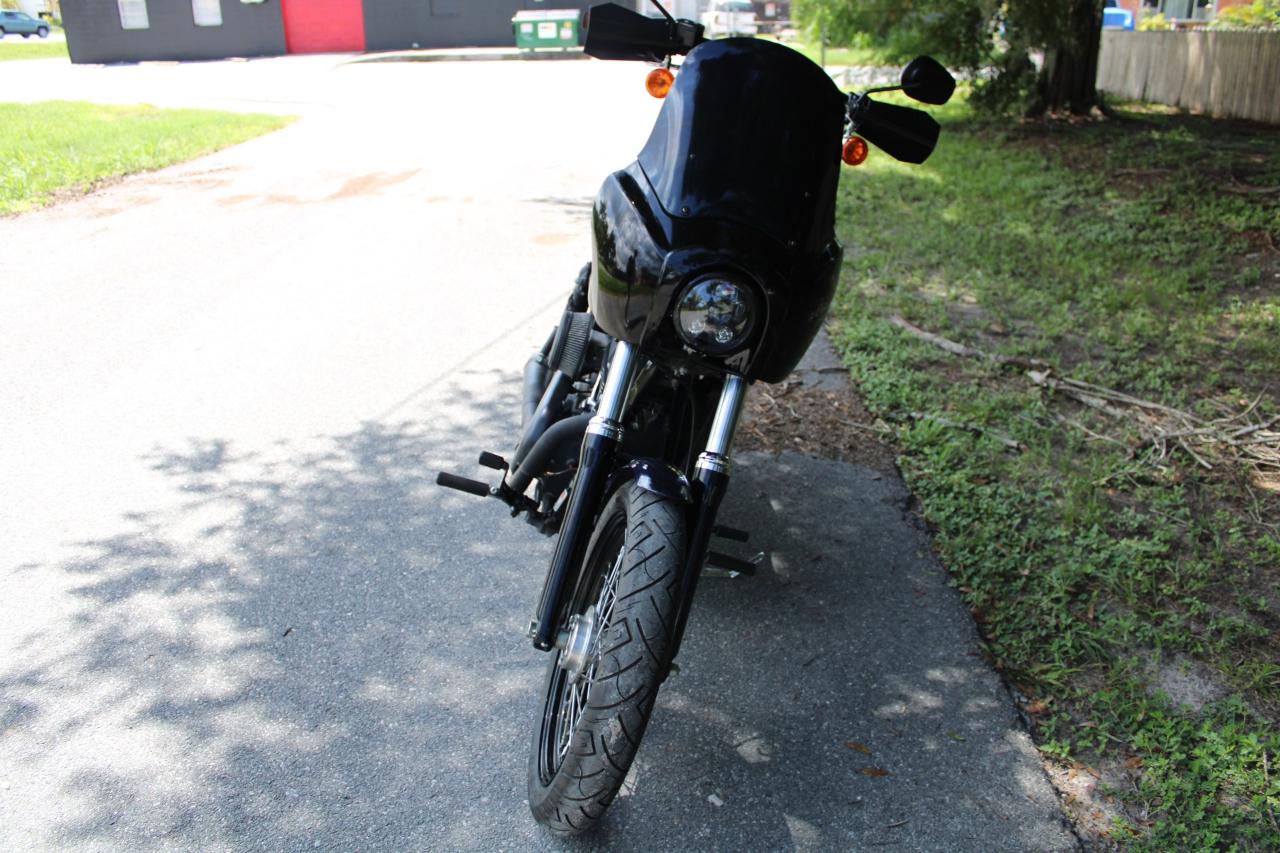

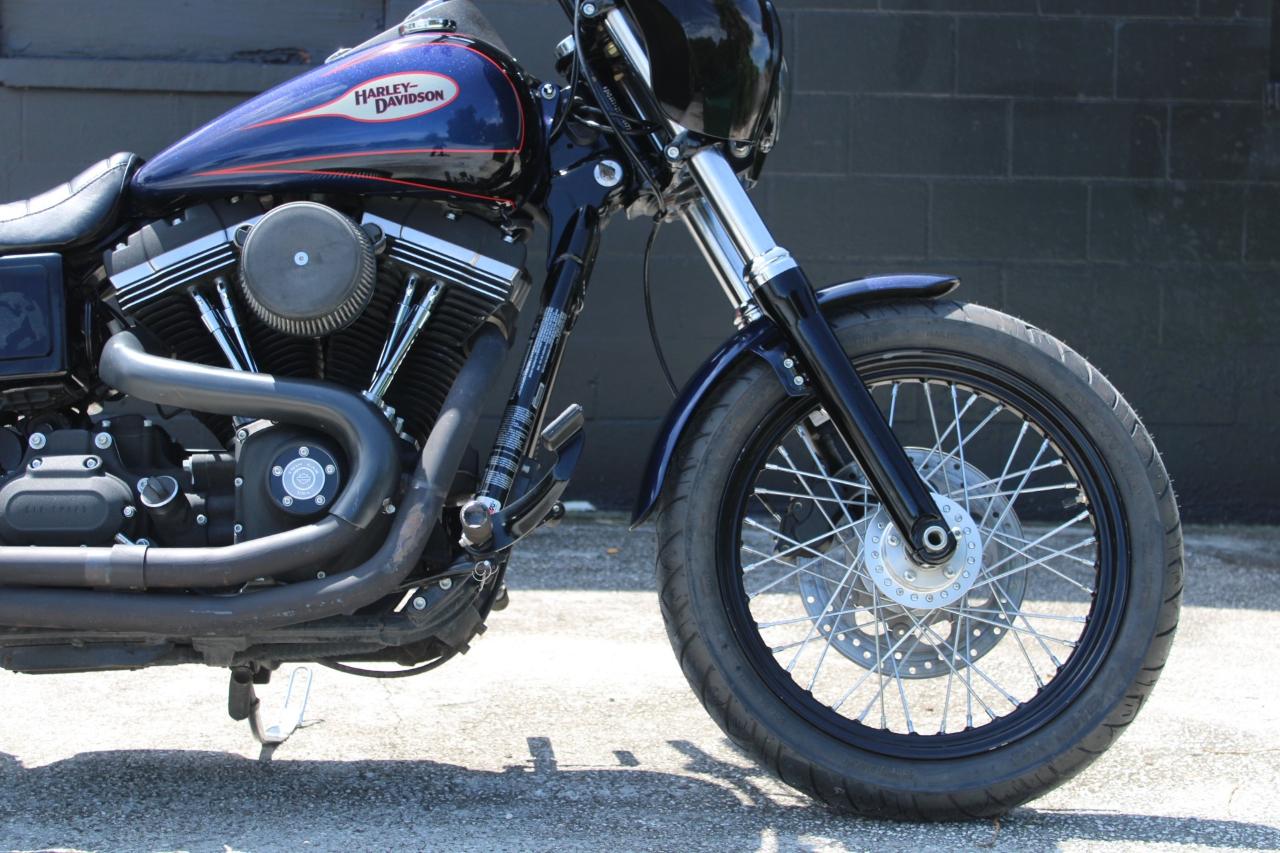

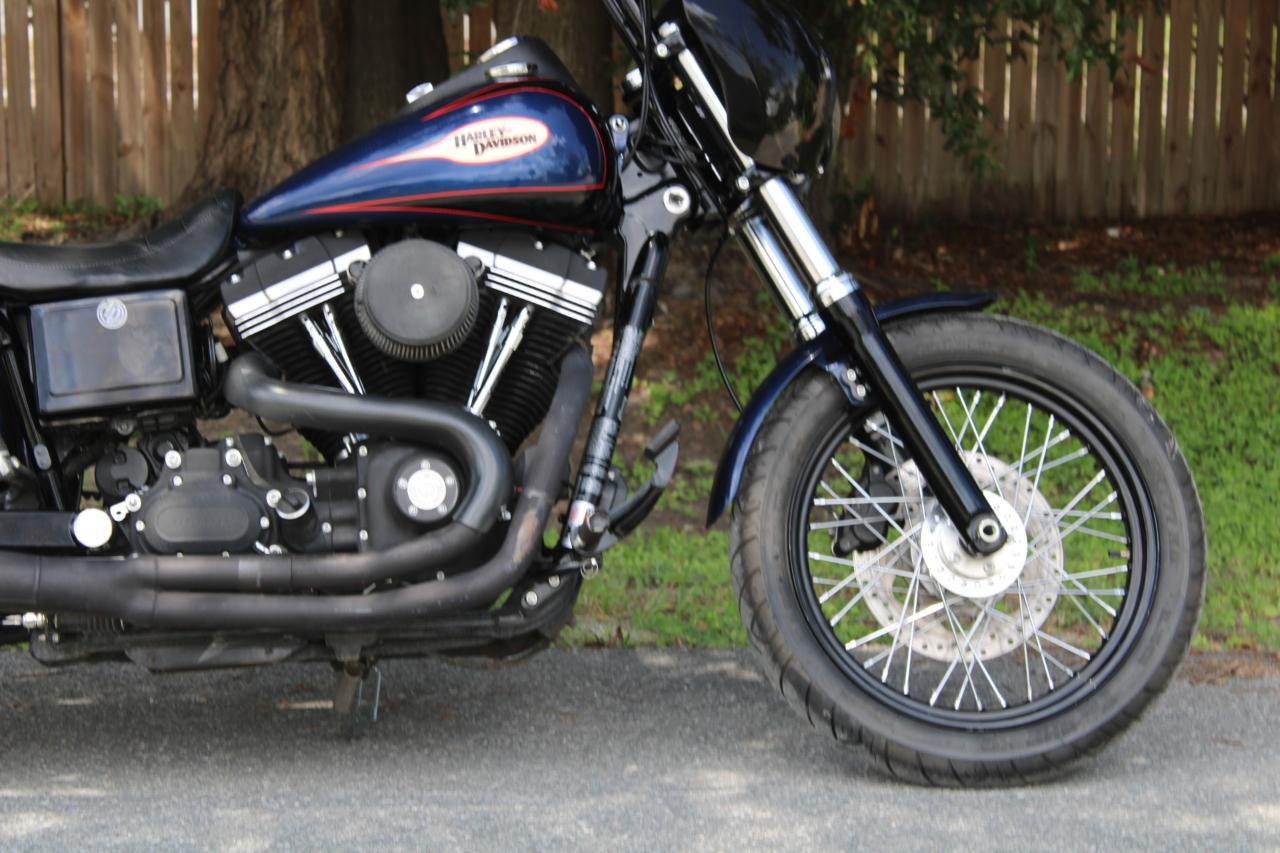

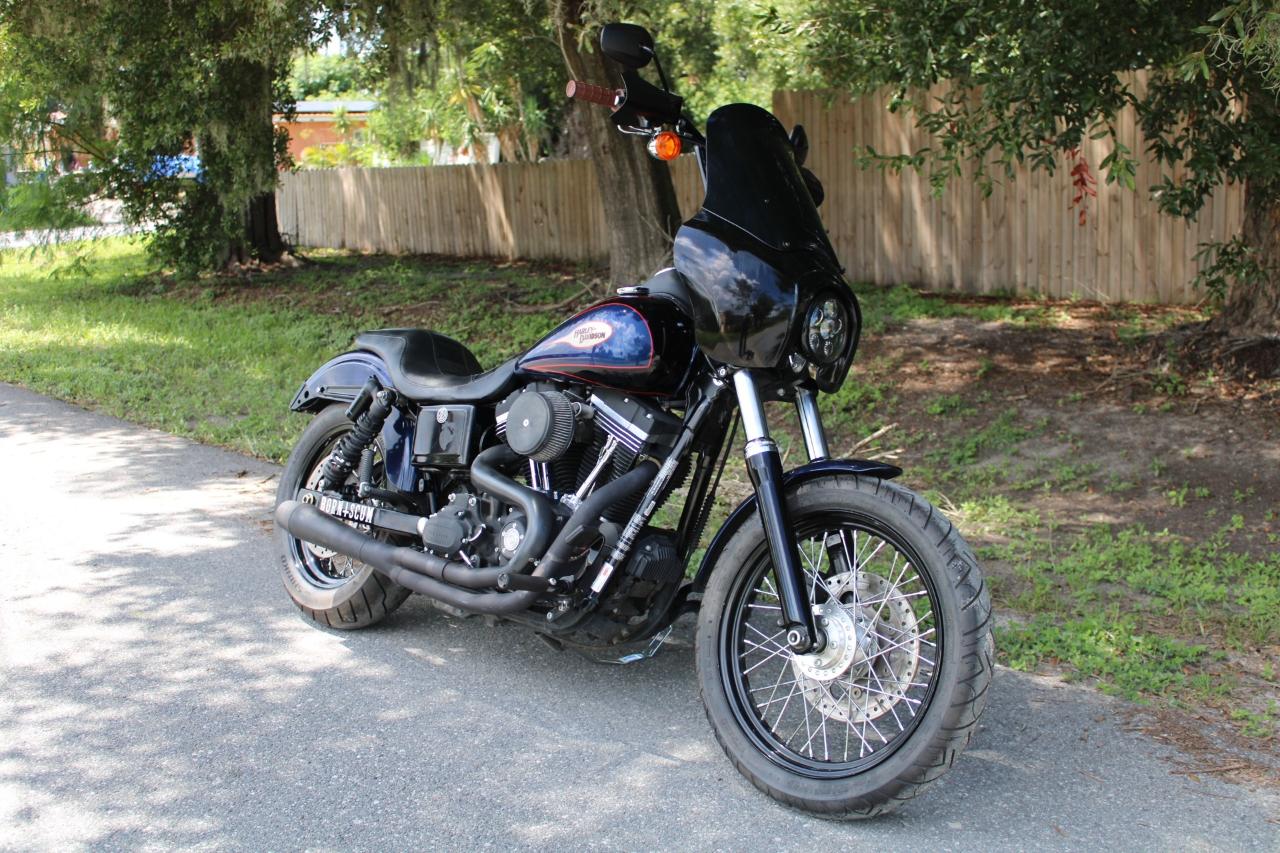

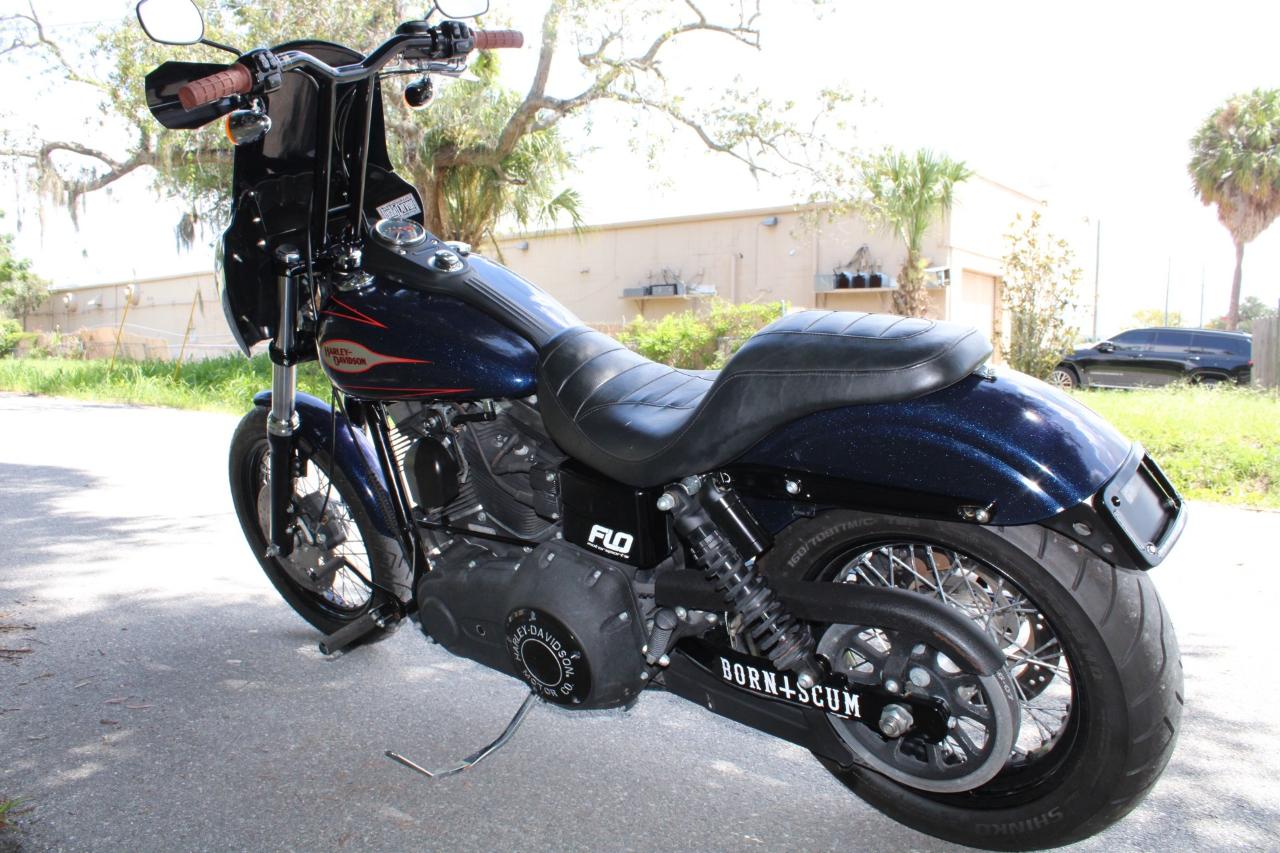

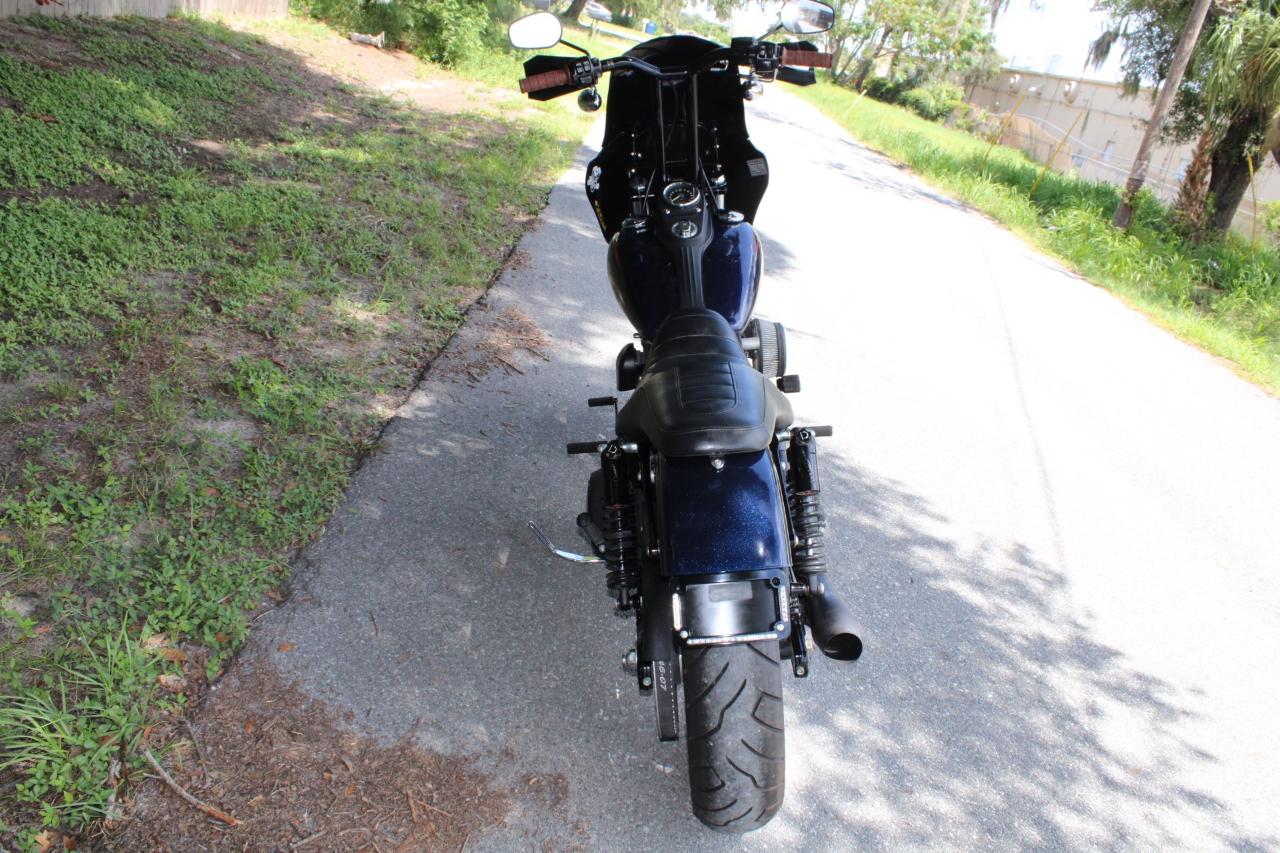

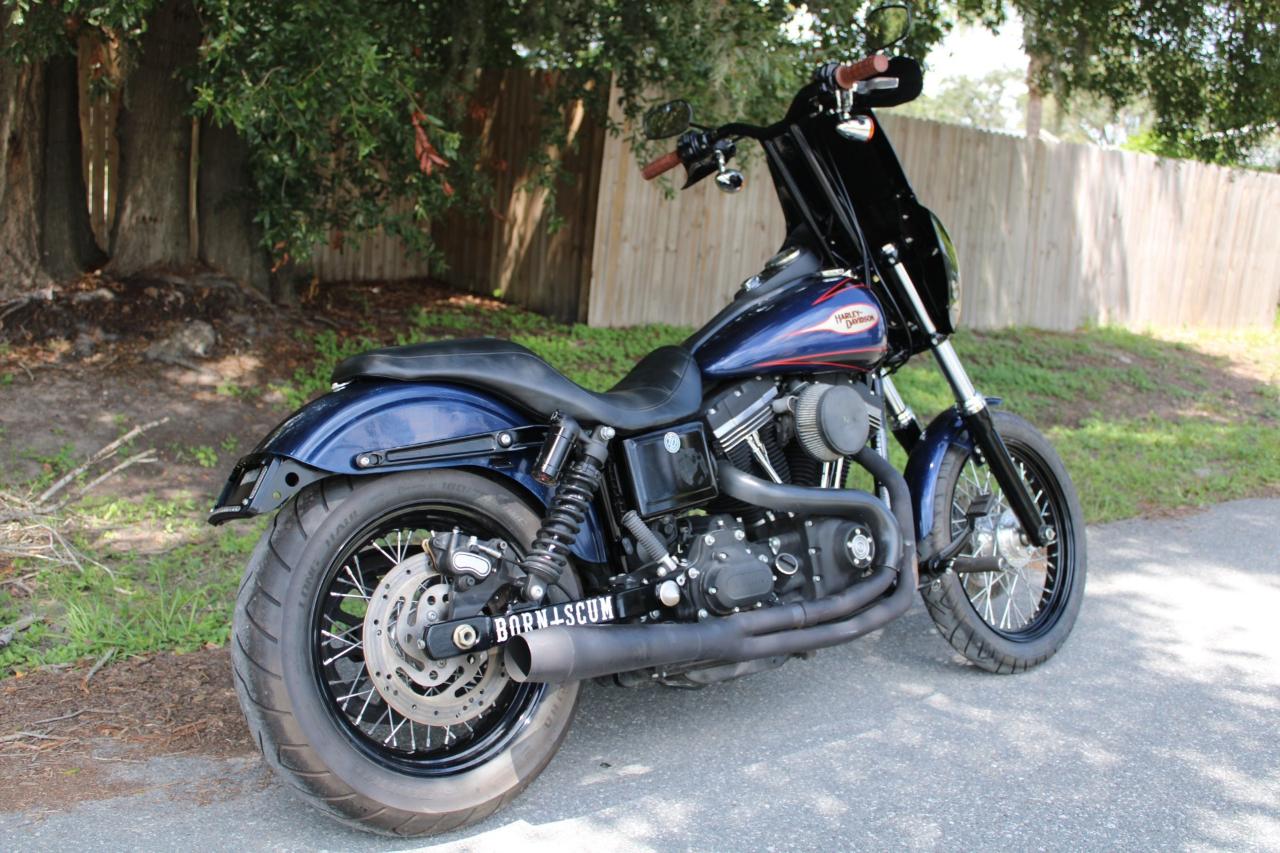

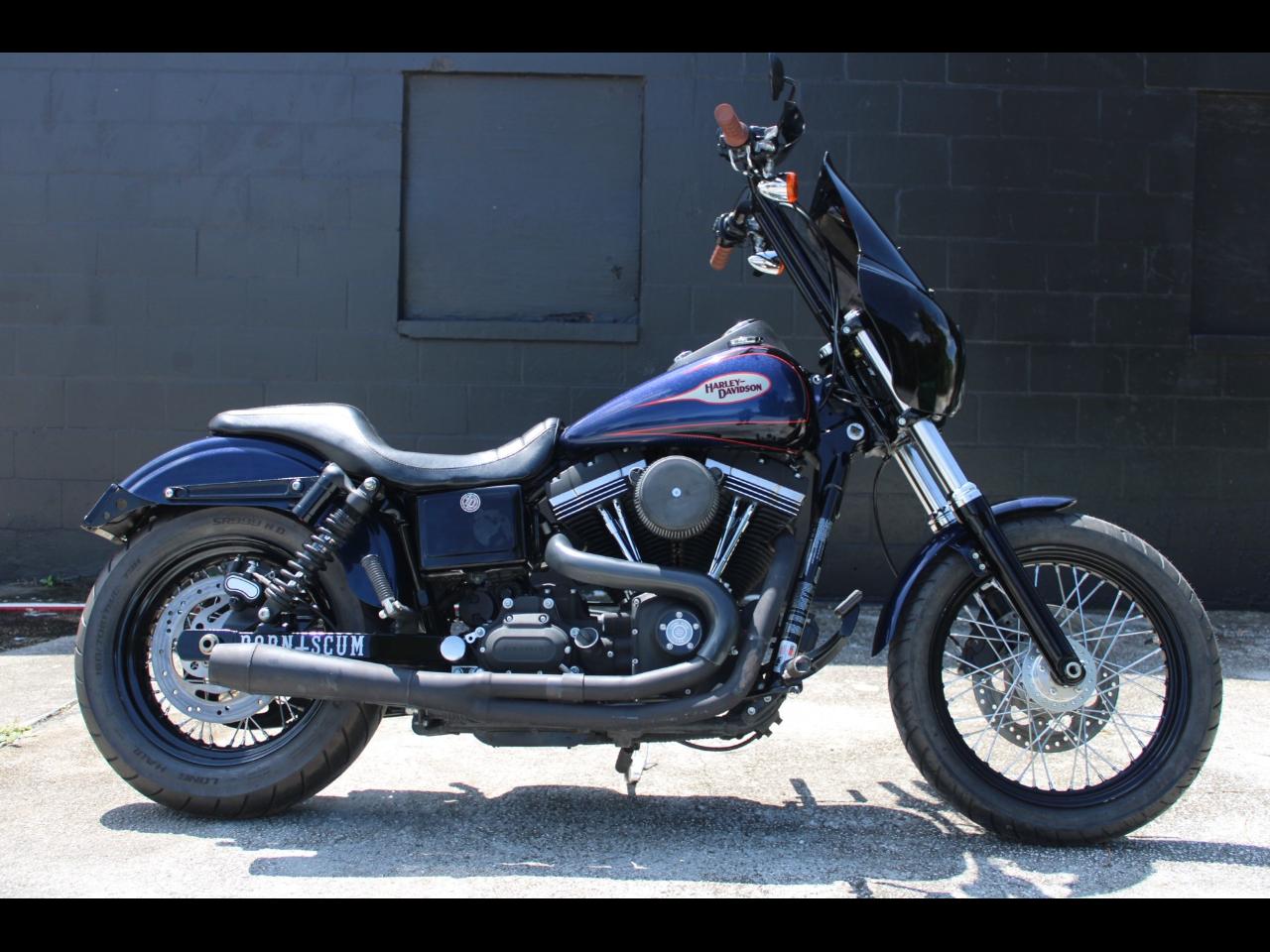

2013 Harley-Davidson FXDB Dyna Street Bob

The 2013 Harley-Davidson FXDB Dyna Street Bob is a stripped-down, factory bobber-style cruiser built for riders who appreciate minimalist styling, strong V-Twin torque, and classic Harley-Davidson character. Featuring the air-cooled Twin Cam 96 engine, blacked-out finishes, mini ape-hanger handlebars, and a solo seat, the Street Bob delivers a raw and authentic riding experience while serving as an excellent platform for customization.

Key Features

• Twin Cam 96™ 1584cc V-Twin engine

• 6-Speed Cruise Drive® transmission

• Belt final drive

• Blacked-out powertrain and front end

• Stainless steel mini ape-hanger handlebars

• Solo bobber-style seat

• Chopped rear fender with side-mounted license plate

• Black laced steel wheels

• Electronic Sequential Port Fuel Injection (ESPFI)

Specifications

Engine & Drivetrain

• Engine: Air-cooled Twin Cam 96™ V-Twin

• Displacement: 1,584 cc (96 cu in)

• Bore x Stroke: 95.3 mm × 111.3 mm

• Compression Ratio: 9.2:1

• Fuel System: Electronic Sequential Port Fuel Injection (ESPFI)

• Torque: 92 lb-ft (124.8 Nm) @ 3,000 rpm

• Transmission: 6-speed manual

• Final Drive: Belt

Chassis & Suspension

• Front Suspension: 49 mm telescopic fork

• Rear Suspension: Dual coil-over shocks

• Front Brake: Single disc

• Rear Brake: Single disc

• Front Tire: 100/90-19

• Rear Tire: 160/70-17

• Rake: 29°

• Trail: 4.7 in (119 mm)

Dimensions

• Seat Height: 25.5 in (648 mm) laden

• Wheelbase: 64.2 in (1,631 mm)

• Overall Length: 92.8 in (2,357 mm)

• Ground Clearance: 4.9 in (125 mm)

• Fuel Capacity: 4.7 gal (17.8 L)

• Dry Weight: 639 lb (290 kg)
